GDX Graphic Displays

Next Generation Display Technology

INNOVATIVE DISPLAY SOLUTIONS FOR DEMANDING APPLICATIONS

Modular hardware, a wide range of interfaces, and predefined toolchains enable fast development of customized display solutions. Fast, efficient, and tailored to your needs.

Built to endure extreme conditions

IP65 protection class and an operating temperature range from -30°C to +70°C

High-performance processor & large memory

Yocto 4-based Linux OS, i.MX8 quad-core, 2 GB RAM, and up to 64 GB eMMC flash memory for optimal performance.

Optimal readability

Anti-glare cover lens, 85° viewing angle, high brightness (1000 cd/m²), and optical bonding ensure excellent readability – even in direct sunlight.

Certified quality

Certified sunlight resistance (DIN 75220)

Precise control

PCAP touch – operable even with moisture and gloves.

Clear sound

1.5 W speaker for clear audio output.

THREE VARIANTS, COUNTLESS POSSIBILITIES

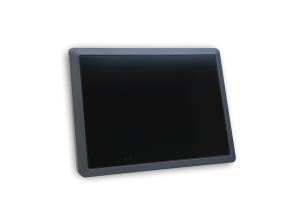

GDT-100 - Graphic Display Touch 10 inch, 1280 x 800 pixels
GDT-100 - Graphic Display Touch 10 inch, 1280 x 800 pixels

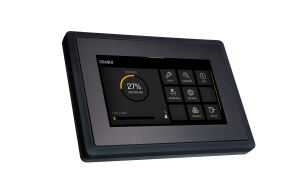

GDT-070 - Graphic Display Touch 7 inch, 800 x 480 pixels
GDT-070 - Graphic Display Touch 7 inch, 800 x 480 pixels

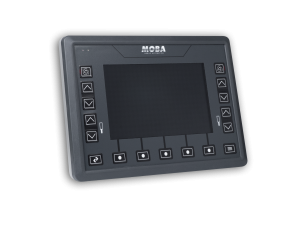

GDH-070 - Graphic Display Hybrid 7 inch, 800 x 480 pixels, customised front foil
GDH-070 - Graphic Display Hybrid 7 inch, 800 x 480 pixels, customised front foil

TAILOR-MADE SOLUTIONS FOR EVERY REQUIREMENT

With the versatile, modular displays in the GDx series, you can customize the optimum solution for your machines – even in small quantities!

Select your display variant

Choose the right model for your application from three base variants.

Specify interfaces, connector modules, and control elements

Configure the required interfaces, equip your display with the desired connector modules, and select suitable control elements based on your requirements.

Create your own application

Easily develop your own application using the GDx Suite software platform with Qt 6.5 or CODESYS 3.5 – the user-friendly suite supports you with development tools and sample implementations.

Key benefits

  • Versatile:
    Whether mounted inside or outside – the displays in the GDx series can be used flexibly. Customizable: From interfaces and connectors to controls and software – all components are fully configurable.
  • Customizable:
    From interfaces and connectors to controls and software – all components are fully configurable.
  • Scalable:
    A well-thought-out hardware and software platform allows easy development of a customized application that can run on all display variants.
  • Future-proof:
    Thanks to the modular design and diverse interfaces, displays can be easily adapted or expanded to meet new requirements at any time.
  • Sustainable:
    Screwed housings facilitate maintenance and repair in compliance with EU regulations (Directive (EU) 2024/1799).

Get the most out of your machines with MOBA systems

Do you have questions about our solutions? We are ready to help you!

Get in touch

MOBA Display Technology - MAXIMUM INTERFACE VARIETY

TAILORED TO YOUR NEEDS

The GDx series offers a wide range of interfaces to ensure seamless integration and efficient data communication.

You decide which interfaces are used:

  • CAN: Three interfaces for reliable communication (CAN-FD capable)
  • UART: Two RS232 interfaces
  • Ethernet: Two high-speed ports (usable in parallel), ideal for integrating digital cameras
  • USB: One USB 2.0 high-speed port, e.g. for updating applications or downloading process data to a USB stick.
  • Digital inputs: Two digital inputs (0V/24V)
  • Analog camera inputs: Four inputs for standard PAL/NTSC analog cameras – all four can be displayed simultaneously

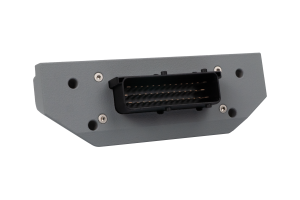

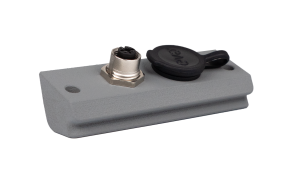

FLEXIBLE CABLING FOR PERFECT INTEGRATION

The GDx series also remains flexible when it comes to cabling.

You determine the connector: the type, position and cable outlet (e.g. downwards or to the rear) can be customized – for a display solution that integrates seamlessly into your machine.

5250220_Display_Modul_V4
250220_Display_Modul_V5
250220_Display_Modul_V4

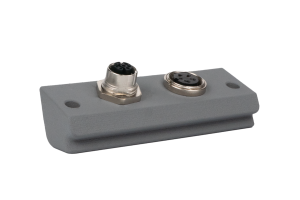

250220_Display_Modul_V2
250220_Display_Modul_V1

CUSTOMIZE YOUR CONTROL ELEMENTS

In addition to connector modules, control elements such as keypads, rotary and push-button and emergency stop switches can be configured and positioned individually. This ensures intuitive operation and increased safety through quick response options.

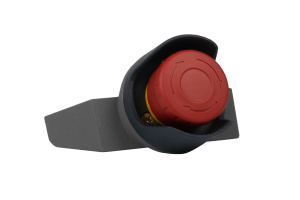

5250220_Display_Modul_Bedienung_V2

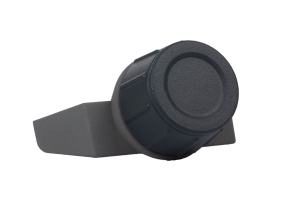

5250220_Display_Modul_Bedienung_V1

Get the most out of your machines with MOBA systems

Do you have questions about our solutions? We are ready to help you!

Get in touch

GDX SUITE

THE SOFTWARE PLATFORM FOR EFFICIENT APPLICATION DEVELOPMENT

The GDx Suite is the central software platform for all MOBA displays and enables fast, efficient development of customized applications using predefined toolchains. It provides a complete system solution – from firmware to application modules.


Based on a Linux operating system, GDx Suite allows for independent development, free from proprietary systems or programming languages.

EFFICIENT DEVELOPMENT WITH PRECONFIGURED TOOLCHAINS

Preconfigured toolchains with powerful tools for graphics, control and fieldbus integration enable efficient application development.


Two main development approaches are supported.

  • Qt-based system development
  • CODESYS-supported PLC programming according to IEC 61131-3
To support application development, predefined software interfaces are available in the form of GDxControl libraries and GDx-Control-Live / GDx-Control-Console. These allow you to configure special device functions and abstract complex operations through a unified interface – across all GDx variants.

FLEXIBLE EXPANSION, CUSTOMIZED APPLICATIONS

Camera integration

Visualization and control of multiple camera streams

Web browser

Chromium-based HTML5 browser for connected applications

Modem integration

Enables cloud access, Wi-Fi, and wireless communication

Object recognition

AI-powered computer vision solutions

QR code generator

Generate QR codes for diverse use cases

MOBA Internet Platform (MIP)

Interface to MIP for remote maintenance and fleet management

Get the most out of your machines with MOBA systems

Do you have questions about our solutions? We are ready to help you!

Get in touch

GLOBAL DISTRIBUTION & LOCAL SERVICE

In addition to our headquarters in Germany, MOBA is represented by its subsidiaries in Europe, USA, South America, India, Asia and Australia, and by a worldwide dealer network in all key markets in the sectors it serves.
